Halbach Array Configurations: Diverse Types, Effects, and Applications


In the realm of magnetic systems, the Halbach array stands out as a sophisticated design that manipulates the direction and distribution of magnetic fields for enhanced performance.

This article explores various Halbach array configurations, examines their magnetic field effects, and discusses their practical applications, providing a comprehensive understanding of this innovative technology.

Understanding Halbach Arrays

A Halbach array utilizes a specific arrangement of permanent magnets where the orientation of each magnet is altered relative to its neighbors. This setup amplifies the magnetic field on one side of the array while suppressing it on the other side, creating a one-sided flux. This unique property makes Halbach arrays incredibly useful in a variety of high-tech applications.

Related reading: Everything You Need to Know About Halbach Arrays

Key Configurations and Their Magnetic Effects


1. Linear Halbach Array

– Configuration: Magnets are arranged in a straight line with sequential 90-degree rotations.

– Magnetic Effect: Enhances the magnetic field on one side significantly while nearly nullifying it on the other side. This results in a powerful, directed field suitable for linear applications.

– Applications: Ideal for magnetic levitation tracks, linear accelerators, and advanced transportation systems where directional magnetic fields are crucial.

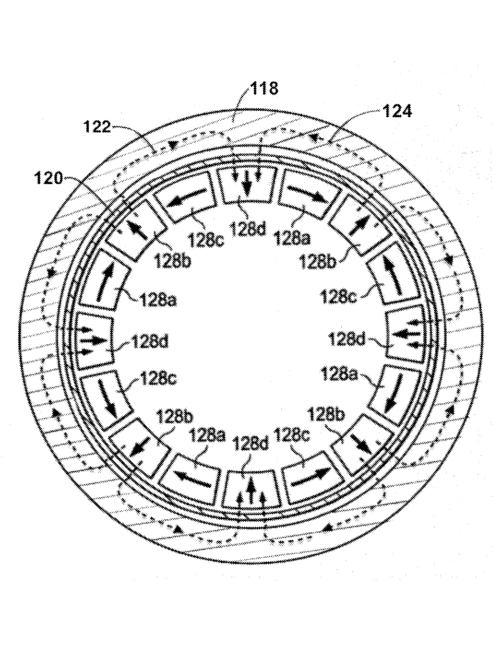

2. Circular Halbach Array

– Configuration: Magnets are arranged in a circle with each magnet oriented to reinforce the radial magnetic field while reducing the field inside the circle.

– Magnetic Effect: Produces a strong radial magnetic field outside the array, which is perfect for creating rotational motion without physical contact.

– Applications: Commonly used in brushless DC motors, centrifugal pumps, and other rotational devices requiring efficient, contactless movement.

3. Planar Halbach Array

– Configuration: A flat, rectangular arrangement where magnets are laid out in rows and columns with alternating orientations.

– Magnetic Effect: Creates a uniform magnetic field across a plane, which is highly advantageous for area-specific applications.

– Applications: Employed in magnetic resonance imaging (MRI) for uniform magnetic fields and in induction heating systems.

Comparative Analysis of Configurations

Each Halbach array configuration offers distinct advantages depending on the application:

– Linear arrays are best for applications where a unidirectional, strong magnetic field is needed along a straight path.

– Circular arrays excel in applications requiring circular motion, leveraging their radial magnetic field for torque and efficiency.

– Planar arrays provide extensive coverage, ideal for applications needing a wide, uniform magnetic field.

Optimization Strategies

– Material Choices: Selecting the right magnetic material can drastically affect the performance, with options ranging from neodymium for high strength to ferrite for cost efficiency.

– Geometric Adjustments: Modifying the shape and orientation of the magnets within the array can fine-tune the magnetic field for specific applications.

Future Directions and Innovations

Ongoing research into Halbach arrays is focusing on optimizing these configurations for more compact designs, increased efficiency, and broader application scopes. Innovations such as adjustable Halbach arrays, where the magnetic orientation can be dynamically altered, are being explored to extend their usability in dynamic systems.


Halbach arrays represent a pinnacle of magnetic design, providing tailored magnetic fields for a variety of advanced technological applications. Their ability to concentrate magnetic fields efficiently makes them indispensable in the fields of electromechanical systems and beyond. As we continue to refine and adapt these configurations, the potential for new applications seems almost limitless, paving the way for more innovative and efficient magnetic solutions.

Stanford Magnets boasts over twenty years of expertise in the production and distribution of permanent magnets, specializing in high-quality rare earth magnetic products. We also offer Halbach array magnets and a variety of magnet assemblies, catering to diverse industrial needs. Send us an inquiry if you are interested.




[1] Wang, Yu-Jen & Hao, Yu-Ti & Lin, Hao-Yu. (2015). Design of a Weighted-Rotor Energy Harvester Based on Dynamic Analysis and Optimization of Circular Halbach Array Magnetic Disk. Micromachines. 6. 375-389. 10.3390/mi6030375.
